Dolphin 2001 Cable Connection Inside Motorbox

by Gregor
(Austria)





I have disasemblied my Dolphin Diagnostic 2001 last Fall to find the root cause of the issue that it sometimes does not drive...

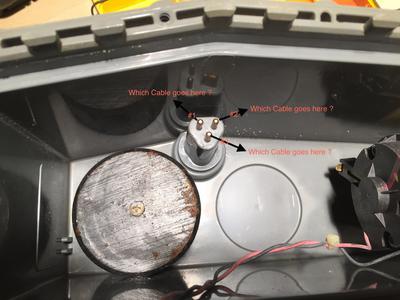

I found out that the Cable is broken... Now I ordered a new cable but I do not know anymore which cable goes to which Pin on the Motor housing connector.

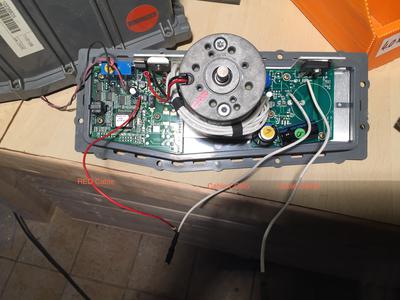

In the attached pictures you will find the Problem.

Could you help me with this ? --That would be great !!

Thank you !! Gregor

Comments for Dolphin 2001 Cable Connection Inside Motorbox

Average Rating starstarstarstarstar

Click here to add your own comments

May 29, 2016
Rating
starstarstarstarstar
Pin connections
by: Anonymous

Based on your drawing:
Pin 1 - white
Pin2 - black
Pin3 - red

May 17, 2016
Rating
starstarstarstarstar
Aquaquality Pools and Spas
by: Anonymous

You can try to contact aquaquality pools and spas, inc through their website aquaqualitypools.com

They are an authorized Maytronic repair facility
