Dolphin 2001

by PETER
(HOLLAND)

Hello,

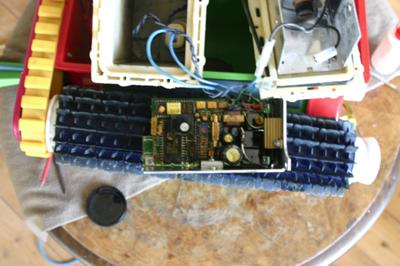

I'm looking for the drawing of the PCB card of the Dolphin 2001 (not the diagnostic) Please send me a picture.

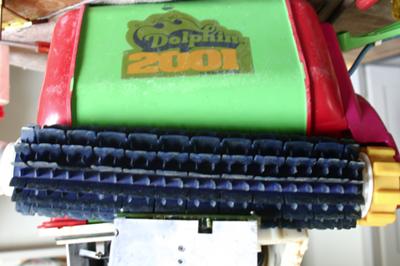

The number on the motor unit: 00952093. On the sticker stands 6H. Its an older model. I don't see a manufacturing date.

Both motors starting running in a program but after ± 1 minute they stopped. On the PCB card is one of the resistor burnt (black). Because it's burnt I can't see wich colours it is.

Greet and thanks
peter
