6H Dynamic Pro- X

by Wanderer

Hi to all

I am trying to repair this model but I have some problems:


How can I test this model out of a pool?The motors run for a few minutes and the stop.Is this normal?Which is an normal operation?

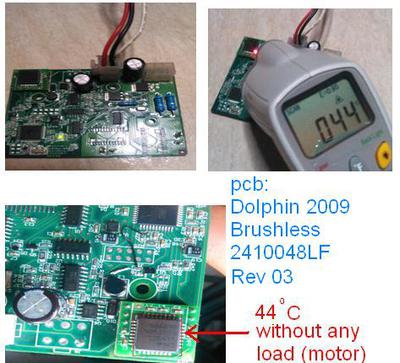

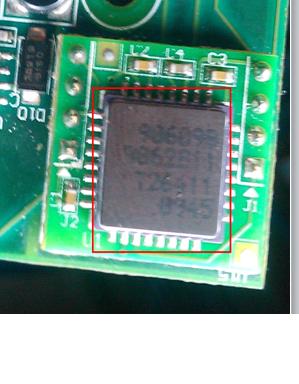

I can't identify the chip that is depicted in the picture.It is getting hot after one minute and so.After this the upper motor (pump) stops.

Any info for dc motors and the pcb will be appreciated.

Thank you.

Comments for 6H Dynamic Pro- X

Average Rating starstarstarstarstar

Click here to add your own comments

May 07, 2019
Fotos r19
by: Anonymous

Hola yo podría pasarte dicha información sin problemas tengo la placa desmontada. Mandame un mensaje y te paso fotos.

Nov 18, 2018
Help me please
by: Jose Luis

I have the same model broken. Im not sure but the component you ask for could be a giroscope, to know relative orientation of the device.

My problem is a blown resistor (R19) of the two paired, so burned that i can see the color bar code.

Could anybody post a more detailed image of it, that help read the color bands of the resistor?.
