diode mfr. part no.

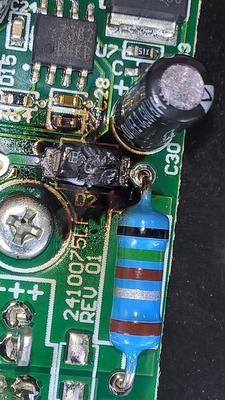

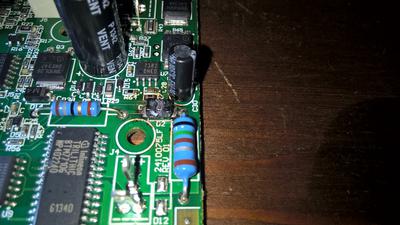

Hello, in board Maytronics Diagnostics 2410075LF, what is the manufacturer part number of D2, the one near the two big resistors?

The diode burned and I can not read the print on it, only iB..34..

Comments for diode mfr. part no.

Average Rating starstarstarstarstar

Click here to add your own comments

Aug 03, 2022
Rating
starstarstarstarstar 		bad diode
by: Kidd

Ferdinando , try unplugging the power supply for a few minutes and hit the power button to totally disperse any remaining power. Then plug back in and try. If not , you may need a new icb. Look up Aqua robot repair in New Jersey. The guy knows his stuff and has parts. (908) 208-4466 . Great guy btw . Good Luck!
Aug 03, 2022
Rating
starstarstarstarstar 		maytronic dynamic
by: Ferdinando

Hi I have a Maytronic DYNAMIC SPMLESS with card 2410076LF the cleaner starts making a turn to the right one to the left after which it stops and turns off the transformer
May 30, 2022
Rating
starstarstarstarstar 		bad diode
by: Kidd

Hello OZ_Mate,

What ever became of this situation? I just found my D2 burned up as well. Thanks
Dec 29, 2021
Rating
starstarstarstarstar 		Dolphin Diagnostic 2410075LF overvoltage
by: OZ_Mate

Thanks Anton for quick response, appreciate.
I forgot to mention that I used 18V battery and checked both motors (fan and drive) separately, for a very short time. Both are working fine.
Is the PWM motor driver BTM7710G for both motors?

Best regards
OZ_Mate
Dec 29, 2021
Rating
starstarstarstarstar 		Dolphin Diagnostic 241007xLF overvoltage
by: Anton from Germany

Hello OZ_Mate,

if the D2 diode is burnt, it means that you had overvoltage there. Anything can be defective.
But almost 100% sure the PWM motor driver BTM7710G:

https://www.infineon.com/cms/de/product/power/motor-control-ics/brushed-dc-motor-driver-ics/integrated-full-bridge-driver/btm7710g/#!?fileId=db3a30431add1d95011aedf960bb0349

In the idle state, there must be no voltage on the motor contacts.
I buy for repairs here:

https://de.aliexpress.com/item/4001230211678.html?spm=a2g0o.cart.0.0.7c3e3c00k2ecHQ&mp=1

Contact a.meisner@arcor.de then send you the circuit diagram
from the 2410076LF, which I recorded myself.
Please do not spread it on the internet.

Best Regards
Anton Meisner
Dec 28, 2021
Rating
starstarstarstarstar 		Any other damaged components, Replacing D2 did not solve the problem
by: OZ_Mate

Hi, I had exact same problem in board Maytronics Diagnostics 2410075LF Ver 01.
I changed D2 with ESD suppressor / TVS diode 400W 30V 5% bi-directional,TYPE SMAJ30CA with marking YK.
Thanks Anton from Germany for Link:
https://www.mouser.de/ProductDetail/Littelfuse/SMAJ30CA?qs=HR2RnyOI4E7JQai5qAA1IA==

But has not solved the problem. It could be some invisible damages to other parts. My PCB looks OK now.
When power supply is connected, I measure voltage at drive motor and fan motor on PCB pins around 29V. But when connectors are inserted to PCB, Voltage drops to almost zero volt.
I did check this situation before changing D2 and was the same values.
My question to those who experienced burnt D2, did you find any other damaged component which need replacement? if yes, which components?

Regards, OZ_Mate
Dec 12, 2020
Rating
starstarstarstarstar 		Dolphin Diagnostic 2410075LF REV 01 Diode D2
by: Anonymous

Hello,

it is an ESD suppressor / TVS diode 400W 30V 5% bi-directional
TYPE SMAJ30CA with marking YK.
Link:
https://www.mouser.de/ProductDetail/Littelfuse/SMAJ30CA?qs=HR2RnyOI4E7JQai5qAA1IA==

Best regards
Anton from Germany
Aug 15, 2019
Rating
starstarstarstarstar 		diode numbers
by: Anonymous

numbers on d2
p607 next line yk
2410075lf rev 01 on board right next to it
