Maytronics power supply 9995670-AU Repair

by Ron
(Australia)

Hi,

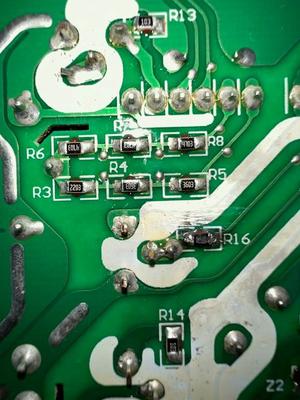

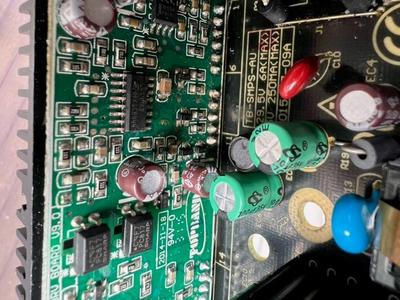

My Dolphin M400 Robot power supply 9995760-AU has died and I am trying to repair it, I have found a moisture short on the board and confirmed Q2 12N50NZ Mosfet has blown and also R16 on the back of the board. My problem is I can't read the resistor value for R16, does any body know the resistor value or have a schematic diagram for this power supply. The power supply looks the same as the AquaPower AQ11070W100 TB-SMPS-180W.

Comments for Maytronics power supply 9995670-AU Repair

Average Rating starstarstarstarstar

Click here to add your own comments

Aug 13, 2025
Rating
starstarstarstarstar 		R16=1R0. R20=?
by: Anonymous

Hello my friend. The value of R16 is 1R0, 1 Ohm.

Can you please tell me the value of R20? It is a little down, near C14 and Z2.

Thank you.
Jul 14, 2025
Rating
starstarstarstarstar 		Repair workshop for power supply Maytronics and Aquabot
by: Cat

Hi Ron,

I am electonics professional repairmen.
I have repaired this kind of the power supply ( probably about 70 units until now).
Plase contact me at "monitors.service@gmail.com"
Thanks. Reagards.

Sincerely Cat.
