R3 Resistor Value Dynamic Pro


Hello
Could you please to tell me the value of R3 resistor on the board of
Dynamic Pro X2?

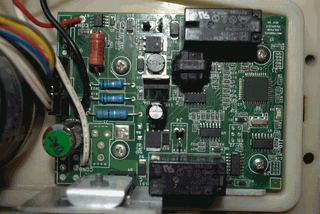

Picture in attached file.
Thank you

Yuri

ponitech@yandex.ru

Comments for R3 Resistor Value Dynamic Pro

Average Rating starstarstarstarstar

Click here to add your own comments

Oct 11, 2014
Rating
starstarstarstarstar 		R3
by: Thehobe

I'm sorry, there is no R3 on this board that I can find so you must mean R31. R31 appears to be 18 ohms from the different photos of this board.
Oct 07, 2014
Rating
starstarstarstarstar 		R3 value
by: Thehobe

If you could send me a blown up photo, I can read the value for this resistor. My R3 is blown up but was a very different style of resistor. This is a common problem for Electronic boards. This resistor is used in conjunction with 1/2 of the Q3 DMOS dual transistor to pulse a high current to the main land power supply which forces it to latch off the main power unitunder certain conditions. I think this resistor is in the range of 10-20 Ohms
